Virtual Reality Headset

WELCOME

Thank you for using the VR-100 Virtual Reality (VR) Headset. We hope you enjoy them!

I. Product Overview
II. Basic Operation
III. Product Information
IV. Troubleshooting

Download Quick Start Guide (PDF)

I. PRODUCT OVERVIEW

FEATURES

• Adjustable Straps
• Easy Phone Loading
• Soft Cushion
• Adjustable PD (Pupil Distance)
• Adjustable Focus

DISCLAIMERS & WARNINGS

• Additional Bluetooth® remote not included
• Not for use longer that 30 minutes
• Not for children under 12, minors should have adult supervision
• Apps and/or games used may have side effects, caution is advised
• Be aware of your surroundings while using, do not walk or move to avoid injury to yourself or others

II. BASIC OPERATION

VR headsets uses a smartphone in split screen mode to produce an image for the left and right eye creating a virtual 3D experience. Use this device with your mobile device and enjoy multimedia content and Apps.

• Protectors are installed on the VR Lenses - remove these protector sheets before you use the VR Headset so you can see clearly. (headset cushion side)
• Straps on the headset can be adjusted with Velcro ends for a secure but comfortable fit.
• Extra pads can be used in the phone placement area
• Cloth wipe is used for gently cleaning lenses

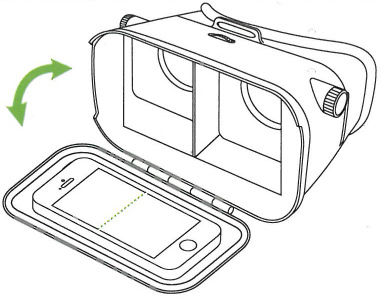

• Front of VR Headset hinges open from the top for device insertion
• Smartphone is inserted into a centered position in the spring adjustment bracket, with screen facing the inside of the headset.

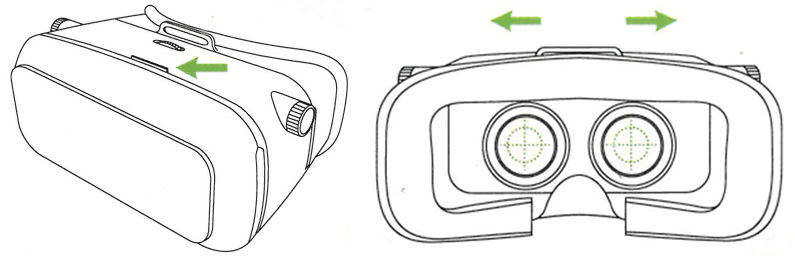

• The PD wheel on top of the headset is used to adjust the width of the lenses to your eyes

• Wheels on sides of the headset are for focal adjustment, adjusts the distance between the smartphone device and the headset lenses.

III. PRODUCT INFORMATION

• Supports phones with 3.5” to 6” screen size
• Inter Pupillary distance: 58 – 68mm
• Adjustable pupil and object distance
• Up to 5mm of myopic compensation

IV. TROUBLESHOOTING

• No volume- check the mobile device volume setting.
• Can’t see screen- make sure the screen is facing the lenses, make sure screen is active.
• Uncomfortable while using- Check strap adjustments, make sure device is centered in bracket.
• Uncomfortable while using- Check strap adjustments, make sure device is centered in bracket.
